BetaFPV ELRS Micro TX Module

SKU: 01070003_1 2.4GHz

BETAFPV Micro RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

50.00 €

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

14 People watching this product now!

Consistency

5 Years of Innovation in Skies

Drone Solutions

The largest drone shop in Greece

Warranty

Delivery exactly as agreed

In-house Warehouse

High-quality stock

Loyalty

98% satisfied customers

Description

BETAFPV Micro RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

<g id=”1″>Προιόντα μενού: Τα</g> τρέχοντα προιόντα μενού είναι διαθέσιμα για αγορά.

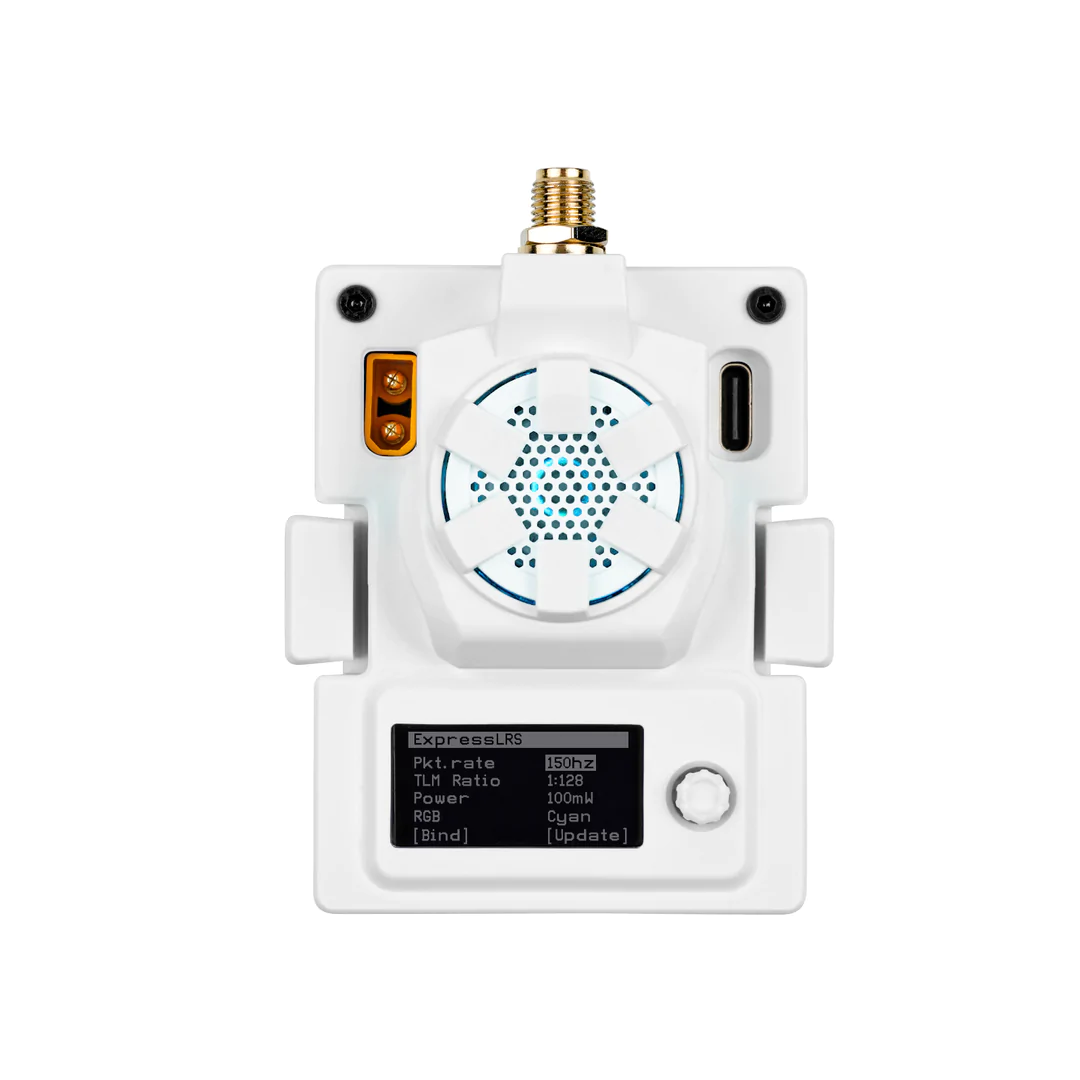

The ELRS Micro TX Module Case and Fan are released now! Upgraded module case with 6.5*13.5mm USB port housing is compatible with most USB Type-C cables. Moreover, there are two colors in the new module case. You can make your own module easily.

Specification

  • Item: ELRS Micro TX Module
  • Input voltage: 5V~12V
  • XT30 port: 5V~12V, recommend 2S(8.4V) battery, DO NOT support 3S(12.6V) or above
  • USB port: Type-C
2.4GHz 1W 2.4GHz 500mW 915/868 MHz 500mW
Packet refresh rate 50Hz, 150Hz, 250Hz, 500Hz 50Hz, 150Hz, 250Hz, 500Hz 25Hz, 50Hz, 100Hz, 200Hz
RF output power 25mW, 50mW, 250mW, 500mW, 1W 25mW, 50mW, 250mW, 500mW 100mW, 250mW, 500mW
Frequency bands 2.4GHz ISM 2.4GHz ISM 915MHz FCC 868MHz EU
Heat sink Included Not included Not included
Backpack Function Support Not support currently Not support currently

ELRS 2.4G 1W Version

The black version with maximum 1W RF output power is released now. Support all 5D button dimensions based on BETAFPV ELRS V2.0.0 firmware. A new backpack function is added, allowing wireless communication between ExpressLRS, and other FPV related devices for command and control, or for querying config.

Note: Please make sure the VRX also supports backpack function when using the module VRX-backpack function. Backpack function will be added to the 500mW version in the future.

Compared with 500mW versions, it not only builds in a cooling fan but also the heat sink is included, which enhances the performance of cooling. So this module can work properly in daily use and not need to worry about temperature.

Note: About the temperature test, please read the article ELRS Micro Module Temperature.

1W Limited Edition

Apart from the classical case for the micro TX module, a limited edition will be released together. Both classical case and limited case versions have the same function. The 3D-printed case with new appearance design makes the module very cool when LED light flashing. Limited stock, first come first serve!

Diagram

BETAFPV Micro RF TX module is compatible with radio transmitter which has the micro module bay (AKA JR/SLIM module bay, e.g. Frsky Taranis X9D, TBS Mambo). Below is the diagram for the 500mW version module.

Below is the diagram for ELRS 2.4G 1W version. DIP switches will be added to 500mW versions in the future.

Note: Please assemble the antenna before power on. Otherwise, the PA chip in the Micro TX module will be damaged permanently.

Note: Please DO NOT use 3S or above battery to power up the TX module via XT30 port. Otherwise, the power supply chip in the TX module will be damaged permanently.

Note: Please do not turn on all DIP switches at the same time. You can refer to the chart to know about DIP switches on/off based on different uses.

1-2 DIP switches 3-4 DIP switches 5-6-7 DIP switches
Update Firmware ON OFF OFF
Operating Mode OFF ON OFF
Update Backpack OFF OFF ON

About the Firmware

The ExpressLRS official project on Github does NOT support the OLED function for the moment. BETAFPV team will work with the ELRS team and make the official repository support the OLED and button function ASAP.

BETAFPV Micro TX Module ELRS V2.0.0 firmware is published. The firmware does not include the Binding Phrase. So please make sure the receiver works on officially major release V2.0.0 protocol and no Binding Phrase set.

  • Support 5D buttons and the OLED menu with the official ELRS 2.0.0 release.
  • The color of the LED changes automatically according to the system status.
  • Other new and various features are fully synchronized with the official ELRS 2.0.0.
  • When entering OLED menus page with long pressing, the connection between RF TX module and receiver works normally. Please do not change the Pkt Rate, otherwise, you must re-power the receiver.

https://github.com/BETAFPV/ExpressLRS

User manual of How to Flash Firmware of ELRS RX/TX.

You could all use the ELRS official firmware V2.0-RC2 now, but lost the function of OLED and Joystick. We will work with the ELRS dev team and make the ELRS official firmware support the full function of the Micro TX Module. For the milestone, OLED will be supported in the V2.1 officially.

https://github.com/ExpressLRS/ExpressLRS

How do I set a binding phrase on this Micro TX module when the ELRS official mainstream does not support OLED yet?

First, κατεβάστε τον πηγαίο κώδικα του κλάδου του master-betafpv-oled-menu στο τοπικό από  Github.

Second, ανοίξτε το ExpressLRS Configurator και φορτώστε τον πηγαίο κώδικα upzip από το τοπικό. Επιλέξτε τη συσκευή-στόχο “BETAFPV 900/2400 TX Micro”. Τώρα, μπορείτε να ρυθμίσετε τη δική σας δεσμευτική φράση και άλλες επιλογές ως συνήθως.

Third, build & flash.

Know More About ExpressLRS

ExpressLRS is an open-source RC link for RC applications.

ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

More and more vendors start to support the ExpressLRS radio protocol in different parts, like radio transmitter with ELRS in stock, drone with built-in ELRS receiver, ELRS TX module for JR bay, or Nano bay. BETAFPV team take part in this project and provide a series of ExpressLRS components.

Backpack Function

Ορισμένες από τις μονάδες ExpressLRS TX περιλαμβάνουν ένα πρόσθετο τσιπ ESP8285, το οποίο μας επιτρέπει να επικοινωνούμε ασύρματα με άλλες συσκευές με δυνατότητα ESP8285 χρησιμοποιώντας ένα πρωτόκολλο που ονομάζεται espnow. Αυτό το τσιπ το ονομάζουμε “TX-Backpack”. Ο στόχος του TX-Backpack είναι να επιτρέψει την ασύρματη επικοινωνία μεταξύ του ExpressLRS και άλλων συσκευών που σχετίζονται με το FPV για εντολή και έλεγχο ή για διαμόρφωση ερωτημάτων.

https://github.com/ExpressLRS/Backpack/wiki

Button and OLED

The ELRS TX module could be configured via the OpenTX LUA script. With OLED and button, no-OpenTX radio controller that supports CRSF could use this ELRS Micro module easily. The following no-OpenTX radio controllers work well with this TX module. Futaba T16IZ, T16SZ and T18SZ (with update to 3.9e), Wsky ET16, Radiolink AT9S Pro.

Note: All 5D button dimensions are available on BETAFPV ELRS V2.0.0 firmware. Please upgrade the firmware for new supports.

Below is the basic operation of the button and OLED for V1.0.0 firmware.

Long Press:

Στη σελίδα της οθόνης κλειδώματος, πατήστε παρατεταμένα για ξεκλείδωμα και είσοδο στη σελίδα μενού.

Στη σελίδα μενού, πατήστε παρατεταμένα για να αλλάξετε την τιμή αυτής της σειράς.

Short Press:

Στη σελίδα της οθόνης κλειδώματος, πατήστε σύντομα μη έγκυρα.

Στη σελίδα μενού, πατήστε σύντομα για να μεταβείτε στην επόμενη σειρά.

Note: When the RF TX module is entering menus page, the connection between RF TX module and receiver will be lost, the connection will recover after exiting menus page automatically; you must re-power the receiver if you have changed the Pkt Rate.

Note: When the RF TX module enters WIFI Upgrade status, the button will be invalid. Please re-power the RF TX module after firmware update via WIFI.

Below is the basic operation of the button and OLED for BETAFPV ELRS V2.0.0 firmware.

Long Press:  Ξεκλειδώστε και εισέλθετε στη σελίδα μενού ή εφαρμόστε τις τρέχουσες ρυθμίσεις στη σελίδα μενού.
Up/Down: Move to the last/next row.
Left/Right: Change the value of this row.
Short Press: Enable binding status or WiFi upgrade status.

Note: You must re-power the receiver if you have changed the Pkt Rate.

Note: When the RF TX module enters WIFI Upgrade status, the button will be invalid. Please re-power the RF TX module after firmware update via WIFI.

Basic Configuration

Το ExpressLRS χρησιμοποιεί το σειριακό πρωτόκολλο Crossfire (πρωτόκολλο AKA CRSF) για την επικοινωνία μεταξύ του ραδιοπομπού και της μονάδας TX. Βεβαιωθείτε λοιπόν ότι ο ραδιοπομπός σας υποστηρίζει το σειριακό πρωτόκολλο CRSF. Χρησιμοποιούμε τον ραδιοπομπό με το σύστημα OpenTX για να δείξουμε πώς να ρυθμίσετε το πρωτόκολλο CRSF και τη δέσμη ενεργειών LUA. Για να το ρυθμίσετε, στο σύστημα OpenTX, εισαγάγετε τις ρυθμίσεις μοντέλου και στην καρτέλα “ΡΥΘΜΙΣΗ ΜΟΝΤΕΛΟΥ”, απενεργοποιήστε το “Εσωτερικό RF”. Στη συνέχεια, ενεργοποιήστε το “External RF” και επιλέξτε “CRSF” ως πρωτόκολλο.

Το ExpressLRS χρησιμοποιεί τη δέσμη ενεργειών OpenTX LUA για να ελέγξει τη μονάδα TX, όπως bind ή setup. Με τη δέσμη ενεργειών LUA, οι πιλότοι μπορούσαν να ελέγξουν και να ρυθμίσουν ορισμένες διαμορφώσεις της μονάδας Nano RF TX. Για περισσότερες λεπτομέρειες, ελέγξτε το  Support Page.

  • Save the ELRS.lua/ELRSV2.lua script files onto the radio transmitter's SD Card in the Scripts/Tools folder;
  • Πατήστε παρατεταμένα το κουμπί “SYS” (για RadioMaster T16 ή παρόμοια ραδιόφωνα) ή το κουμπί “Μενού” (για Frsky Taranis X9D ή παρόμοια ραδιόφωνα) για πρόσβαση στο Μενού Εργαλείων όπου μπορείτε να βρείτε το σενάριο ELRS/ELRSV2.lua έτοιμο για εκτέλεση με ένα μόνο κλικ.
  • Below image shows the LUA script run successfully;

ELRS.lua script

ELRSV2.lua script

Δέσμη & Ισχύς εξόδου

Η μονάδα Micro RF TX συνοδεύεται από επίσημα κύρια έκδοση πρωτοκόλλου V1.1.0 ή V2.0.0 και δεν περιλαμβάνεται φράση δέσμευσης. Επομένως, βεβαιωθείτε ότι ο δέκτης λειτουργεί στο επίσημο πρωτόκολλο κύριας έκδοσης V1.0.0~V1.1.0 ή V2.0.0. Και δεν έχει οριστεί δεσμευτική φράση. Η μονάδα Micro RF TX θα μπορούσε να εισέλθει σε κατάσταση δέσμευσης μέσω της δέσμης ενεργειών ELRS.lua ή ELRSV2.lua, όπως περιγράφεται στο κεφάλαιο “LUA Script”. Επιπλέον, χρησιμοποιώντας το κουμπί και το OLED, μετακινηθείτε στη θέση BIND και πατήστε παρατεταμένα το κουμπί. Πατήστε σύντομα το κουμπί εάν είναι V2.0.0. Στη συνέχεια, η μονάδα RF θα εισέλθει σε κατάσταση δέσμευσης.

ELRS.lua script

Note: The LED will NOT flash when entering binding status. The module will exit from binding status 5 seconds later auto. Short and consecutive press 3 times to bind.

ELRSV2.lua script

Note: The LED will NOT flash when entering binding status. The module will exit from binding status 5 seconds later automatically.

Note: If you reflash firmware of the RF TX module with your own Binding Phrase, please make sure the receiver has the same Binding Phrase. The RF TX module and the receiver will bind automatically in this situation.

Η μονάδα Micro RF TX θα μπορούσε να αλλάξει την ισχύ εξόδου μέσω της δέσμης ενεργειών ELRS.lua ή ELRSV2.lua, όπως περιγράφεται στο κεφάλαιο “LUA Script”. Επιπλέον, χρησιμοποιώντας το κουμπί και το OLED, μετακινηθείτε στη θέση Εξόδου. Εναλλάξτε την ισχύ εξόδου πατώντας παρατεταμένα το κουμπί (σενάριο ELRS.lua). Πατώντας το κουμπί αριστερά ή δεξιά (σενάριο ELRSV2.lua).

ELRS.lua script

Note: The RGB LED will NOT change according to the output power. When the output power is 250mW or above, the fan will spin automatically. The Micro RF TX module does NOT support 1W or 2W output. When switching to this value, the system will move to 500mW automatically.

ELRSV2.lua script

Note: The RGB LED will NOT change according to the output power. When the output power is threshold value(default 250mW) or above, the fan will spin automatically.

FAQ

BETAFPV ELRS Micro TX module user manual download.

Package

  • 1 * BETAFPV ELRS Micro TX module
  • 1 * BETAFPV Moxon antenna (2.4G, 915MHz or 868MHz)
  • 1 * Monopole antenna
  • 1 * Micro TX module user manual
  • 1 * Spare USB data cable (Type-A to Type-C)

Note: ELRS Micro TX Module 915MHz or 868MHz version excludes the Monopole antenna. The Moxon antenna black or white will be shipped randomly.
