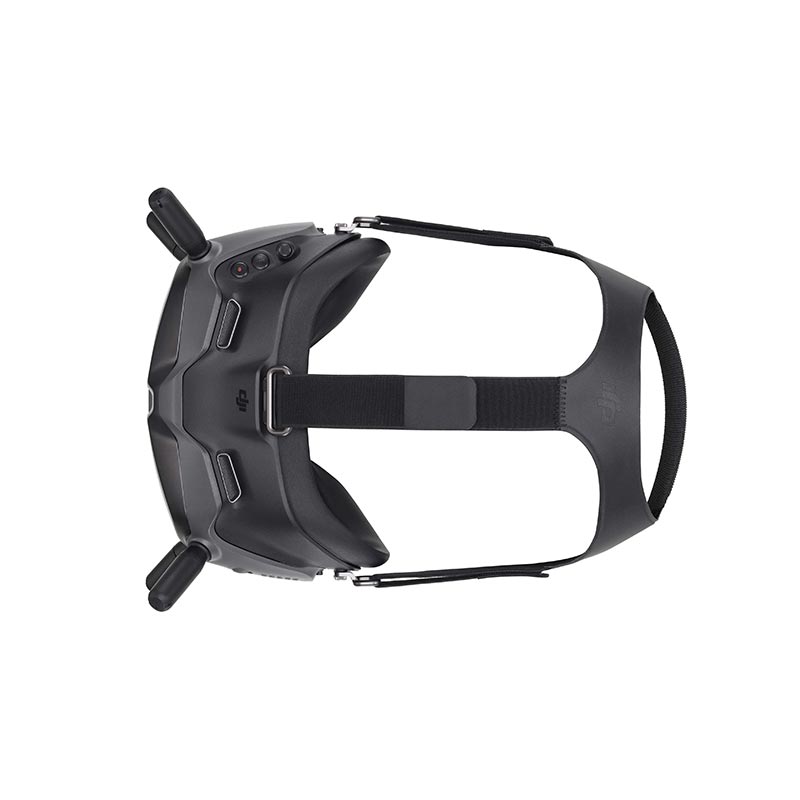

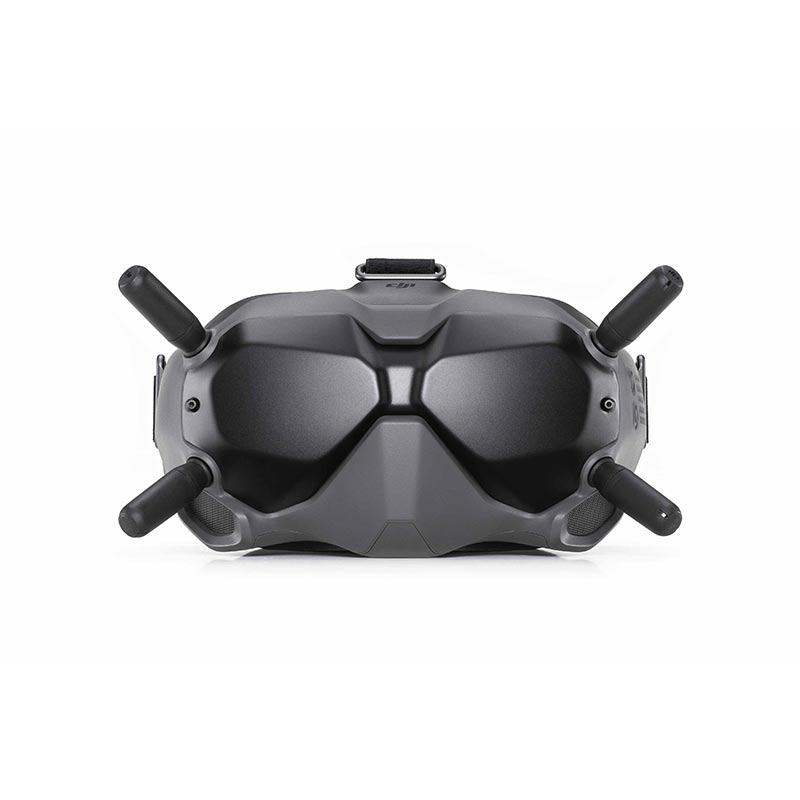

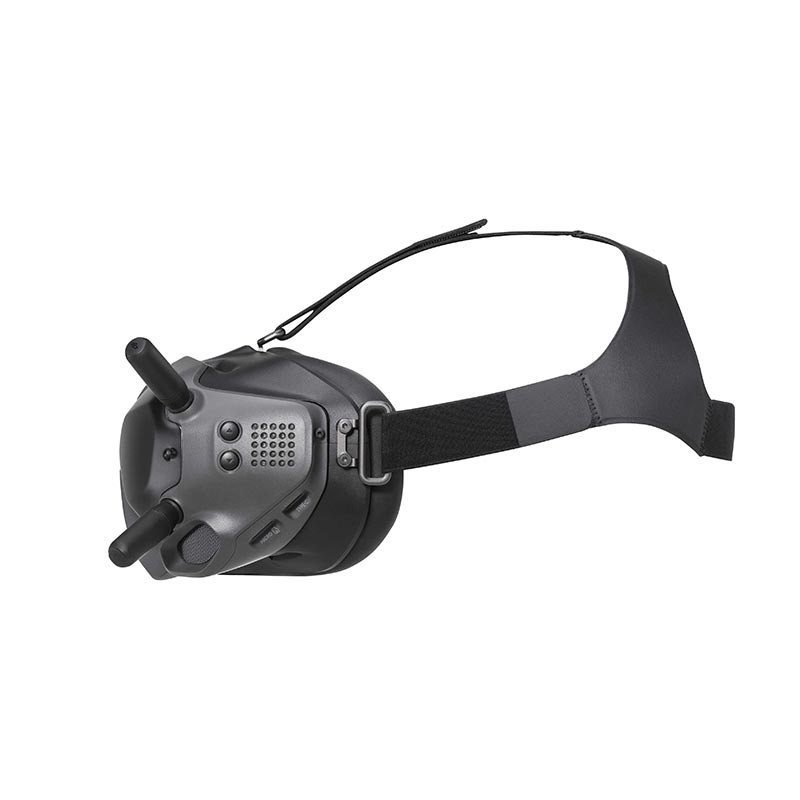

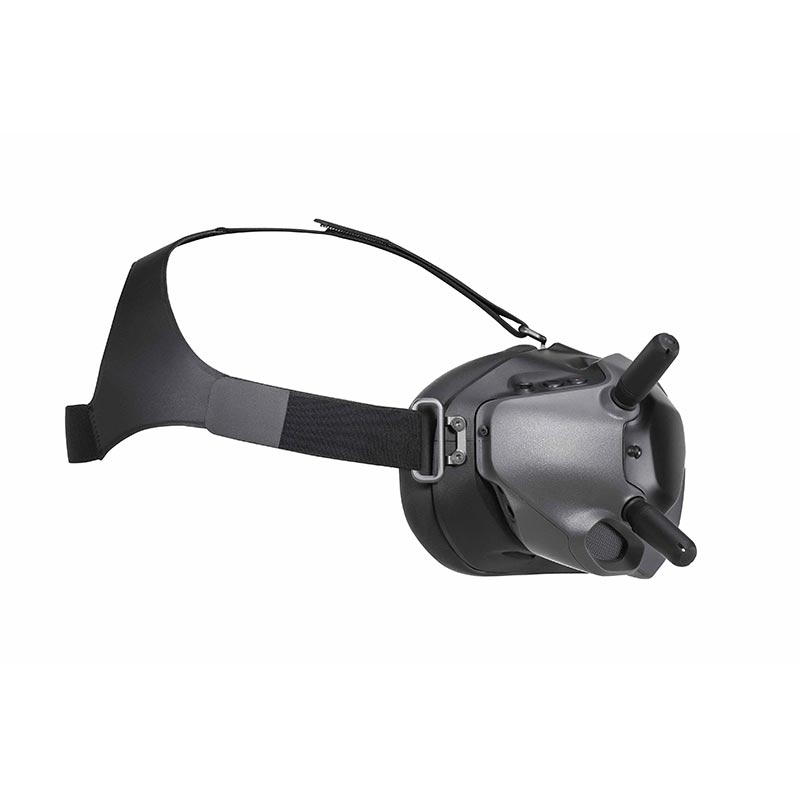

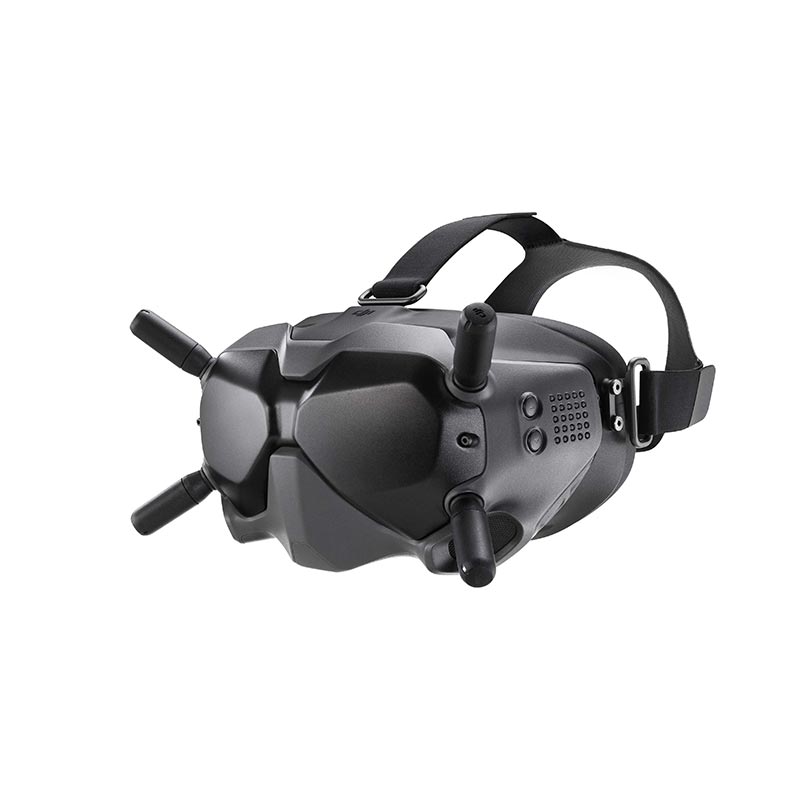

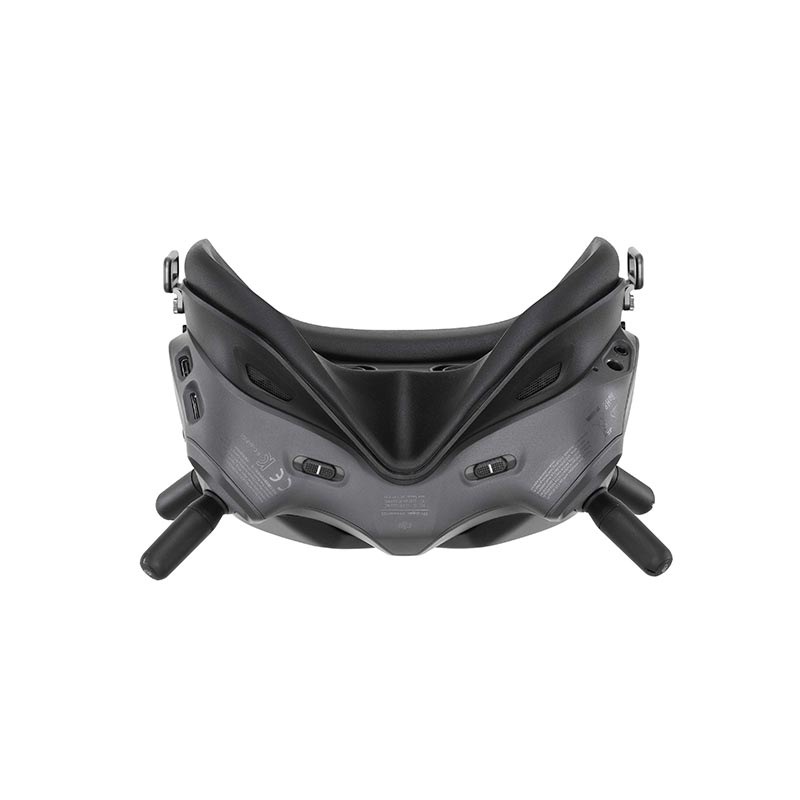

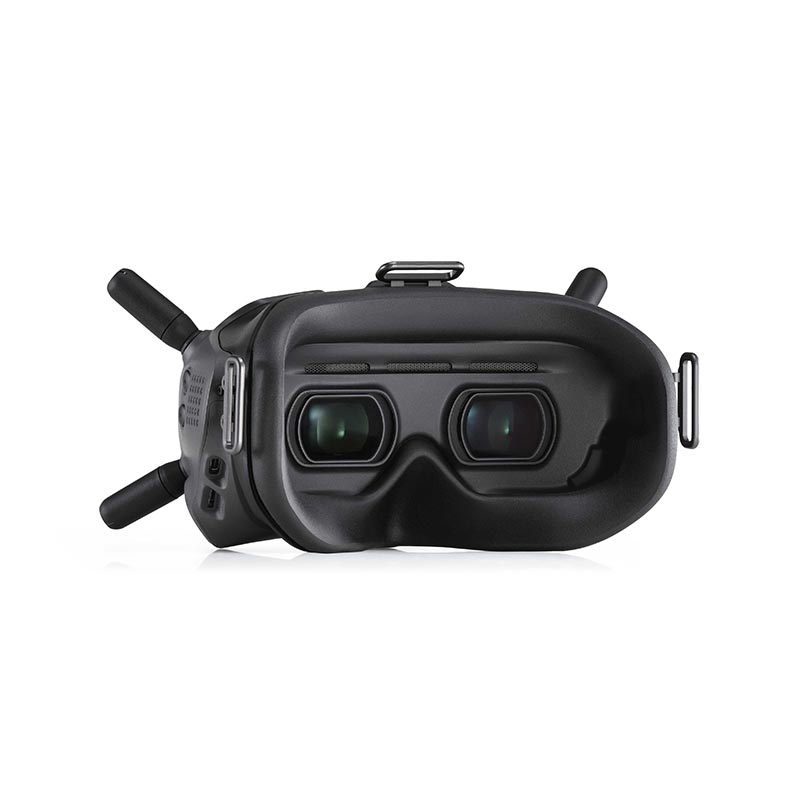

DJI FPV Goggles V2

The DJI FPV Goggles V2 with DJI O3 image transmission features high definition, low latency, long-distance transmission, and strong anti-interference capabilities. The DJI FPV Goggles Battery in the box supports up to 110 minutes of flight when fully charged.

High definition, low latency, strong immersion, long-distance transmission, and strong anti-interference capabilities.

Battery in the box supports up to 110 minutes of flight when fully charged.

Avoid exposing the inside of the goggles to direct sunlight.

Dual frequency is only available when used with the DJI FPV Drone. If used with DJI FPV Air Unit, only 5.8 GHz is supported. Due to local policies and regulations, the 5.8 GHz frequency band is currently unavailable in some countries, including (but not limited to) Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations, and always check local rules and regulations before use, as they may change over time.

Always follow the local laws and regulations when using the goggles. VLOS is legally required in some regions and countries, and it is always recomended to use a spotter when maintaining VLOS is not possible.



DJI FPV Goggles V2 (inc. foam padding) ×1

DJI FPV Goggles Battery ×1

DJI FPV Goggles Power Cable (USB-C) ×1

DJI FPV Goggles Antenna (Dual Band) ×4

Headband ×1

USB-C cable ×1

Sleeve ×1

DJI FPV Goggles V2

Weight: Approx. 420 g (headband and antennas included)

Dimensions: 184×122×110 mm (antennas excluded)
202×126×110 mm (antennas included)

Screen Size: 2-inches (×2)

Screen Refresh Rate: 144 Hz

Communication Frequency: 2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP): 2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm

5.725-5.850 GHz

FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm

Communication Bandwidth: 40 MHz (Max.)

Live View Mode: Low-Latency Mode: 810p/120fps ≤ 28ms*
High-Quality Mode: 810p/60fps ≤ 40ms*

* A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.”

Max Video Bitrate: 50 Mbps

Transmission Range: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Video Format: MP4 (Video format: H.264)

Supported Video and Audio Playback Formats: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3）

Operating Temperature: 0° to 40° C (32° to 104° F)

Power Input: Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries.

FOV: 30° to 54°; Image size: 50-100%

Interpupillary Distance Range: 58-70 mm

Supported microSD: Cards microSD (up to 256 GB)

DJI FPV Goggles Battery

Capacity: 1800 mAh

Voltage: 9 V (Max.)

Type: LiPo 2S

Energy: 18 Wh

Charging Temperature: 0° to 45° C

Max Charging Power: 10 W

Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
