[1] 4km maximum transmission distance; FCC: 4 km, CE: 0.7 km, SRRC: 4 km. Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.
[2] Latency rate under 28 ms at 720p/120fps and under 40 ms at 720p/60fps.

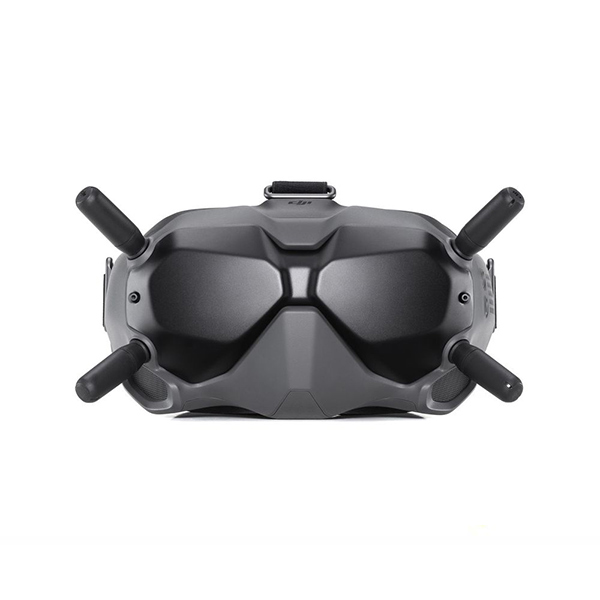

[3] There are up to eight channels for DJI FPV Goggles depending on the region (FCC: 8, CE/SRRC: 4, MIC: 3). Each channel has a bandwidth of 20 MHz. The default channel is eight and only one pilot at a time is allowed to use this channel. Channel eight can be changed manually to avoid interference from other devices. All channels operate under a 5.8 GHz frequency.

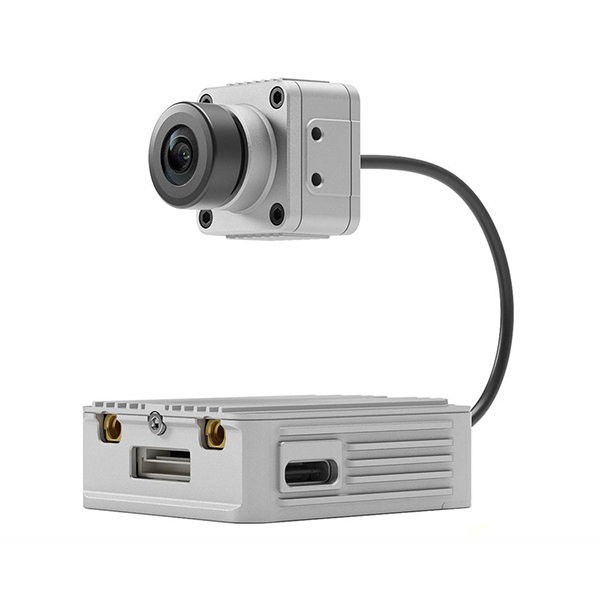

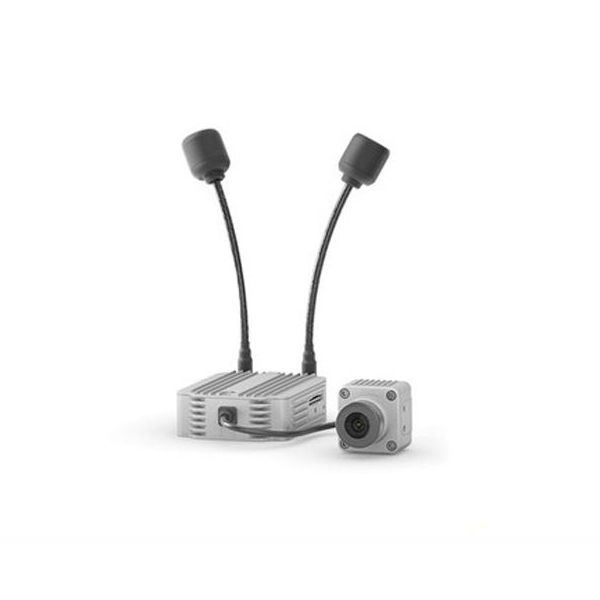

[4] The DJI FPV Air Unit can also record in 720p/120fps (without audio).
[5] 7ms low latency between the DJI FPV RC and DJI FPV Air Unit can only be achieved under ideal conditions. Latency rates are not consistent.
[6] 4-in-1 integrated software for the DJI FPV RC reduces operational errors and allows users to change settings remotely.
[7] Users must remove the microSD card from their DJI FPV Air Unit and insert it in their DJI FPV Goggles to watch recorded videos.
[8] Omnidirectional antennas are only compatible with other antennas that are left-hand circular polarized.
[9] Custom-made myopia lenses are only compatible with DJI FPV Goggles and will be sold at the DJI Online Store.
[10] The end-to-end latency is the total time from camera input to screen display. DJI FPV Goggles can reach a maximum transmission distance (FCC) in a wide-open area with no electromagnetic interference, achieving minimum latency in Low Latency mode (720p/120fps).
