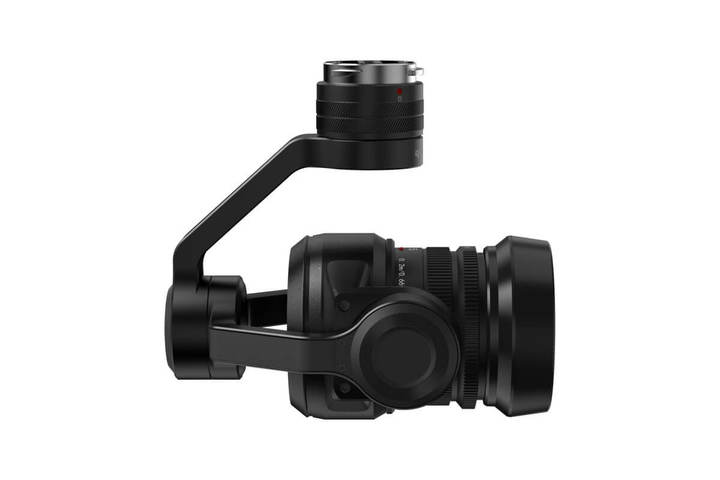

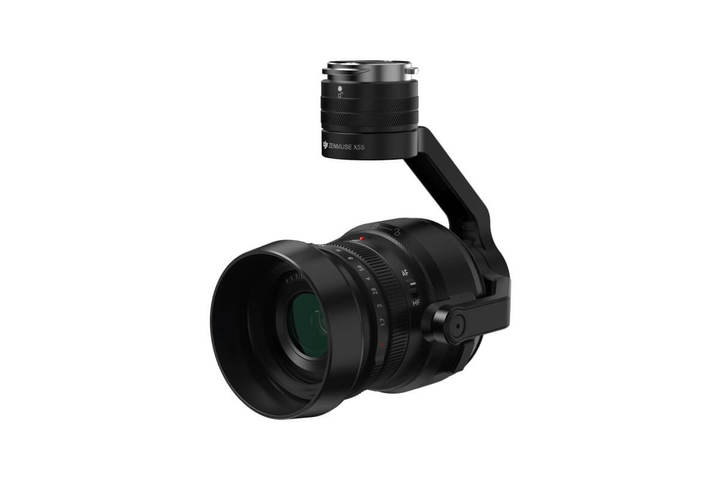

Zenmuse X5S

Equipped with an uprated Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratioand color sensitivity than the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm(equivalent to 18mm-90mm on a 35mm camera), allowing more creative flexibility. The new CineCore 2.0 image processing system on the Inspire 2makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video as well as 4K 60fps using H.264 and 4K 30fpsusing H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designedto keep pace with the rigors of high-end professional aerial imaging.

ARRAY OF COMPATIBLE LENSES

Since it uses a standard Micro 4/3 mount, the Zenmuse X5S now supports up to eight professional lenses* with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), providing more creative control over the final look of a shot.

• Olympus M.Zuiko 12mm/2.0
• DJI MFT 15mm/1.7 ASPH
• Olympus M.Zuiko 17mm/1.8
• Panasonic Lumix 15mm/1.7
• Olympus M.Zuiko 25mm/1.8
• Panasonic Lumix 14-42mm/3.5-5.6 HD
• Olympus M.Zuiko 45mm/1.8
• Olympus M.Zuiko 9-18mm/4.0-5.6

*A balancing ring is needed for some lenses. More compatible lenses will be available.

HOLLYWOOD-GRADE VIDEO

Using CineCore 2.0, the Zenmuse X5S records video at a maximum resolution of 5.2K/30fps in CinemaDNG 12bit1, 5.2K 30fps Apple ProRes 422 HQ and 4K 30fps Apple ProRes 4444 XQ (no alpha)2. Additional recording options include video in 4K/60fps using H.264 or oversampling video in 4K/30fps using H.264/H.265, both with a bitrate of 100Mbps.1 2Additional licenses required

AST, EFFICIENT WORKFLOWS

The DJI CINESSD card (PCIe3.0 NVMe SSD support) and a highly optimized FAT32/exFAT file system, allows Zenmuse X5Sfootage to be transferred directly through the DJI CINESSD STATION card reader to a computer at high speeds without anyadditional software. Footage also supports the DIT standard. CinemaDNG or Apple ProRes workflows can be used for post-processing.

LOSSLESS IN-VIDEO SINGLE AND BURST PHOTO CAPTURE

Using only the Micro SD card, 20.8MP stills can be captured at 14fps in Burst Mode in JPEG+DNG. Using the DJI CINESSD opens up 20fps continuous DNG Burst Mode with a maximum image resolution of 20.8 megapixels. Stills can also be taken during video recording without interruption.

ENHANCED CAMERA STABILIZATION

Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor.Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensuremore stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating seamlessly smooth video.360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage1 can be captured even when using a 90mm2 lens.

1 Equivalent to 35mm camera’s standard focal length2 Exposure time must be equal to or longer than 1/60 in GPS mode

LONG-RANGE CAMERA AND FOCUS CONTROL

Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO app.Precision control also extends to focus, with DJI GO and the optional DJI Focus, offering focus control across the entire transmission range.Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away*.
